Universal Twin LNB
digital SAT LNB (DVB-S2) for 2 participants (8K, 4K, UHD, HDTV, 3D)
- reception system for connecting satellite systems to 2 independent receivers/TVs
- suitable for direct connection without a multiswitch
- equipped with fully encapsulated, weatherproof housing

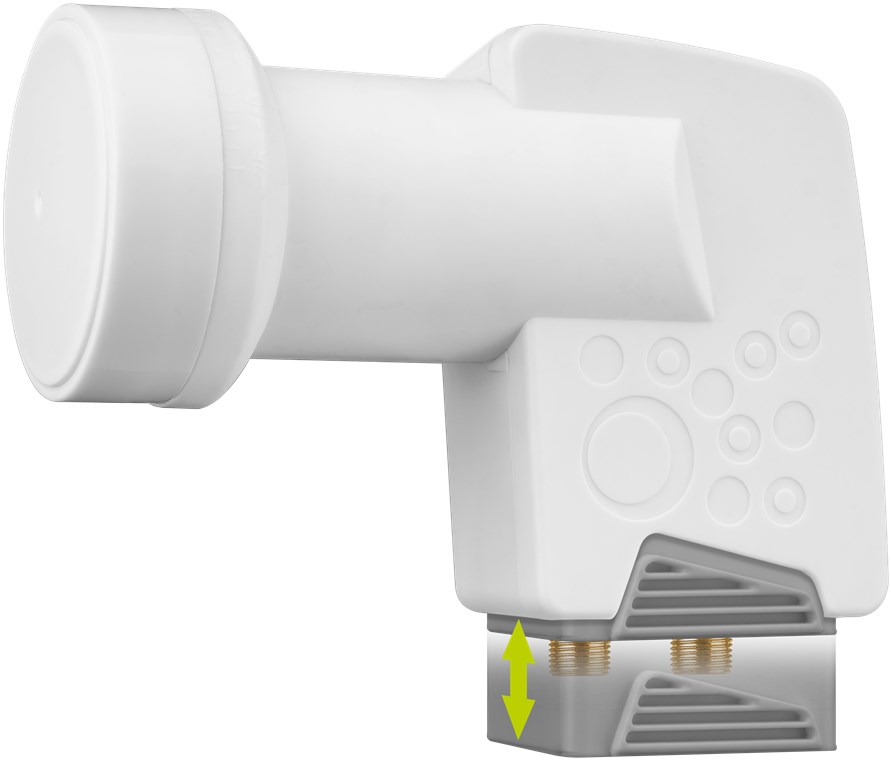

- additional protection of the gold-plated F-connectors through pull-out wetness protection
- higher signal strength thanks to 0.1 dB noise figure
Connections
Device connections
| max. subscriber |
2 |
| Output, contact material |
gold-plated |
| Number of outputs |
2 |
Signal transmission
| noise figure |
0.1 |
| Input frequency low band |
10,70 - 11,70 GHz |
| Input frequency high band |
11,70 - 12,75 GHz |
| Output frequency low band |
950 - 1.950 MHz |
| Output frequency high band |
1.100 - 2.150 MHz |
| Signal amplification Legacy |
52 - 62 (typ. 57) dB |
| LOW frequency Low |
9.75 |
| LOW frequency High |
10.6 |
| Transmission modes |
DVB-S, DVB-S2 |
General
| Diameter Feedhorn |
40 |
| Color |
grey, white |
| Markings |
CE, WEEE |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
