Ultra-Flat Active Full HD DVB-T2 Indoor Antenna, incl. LTE/4G Filter
with up to 16 dBi gain for weak received signal

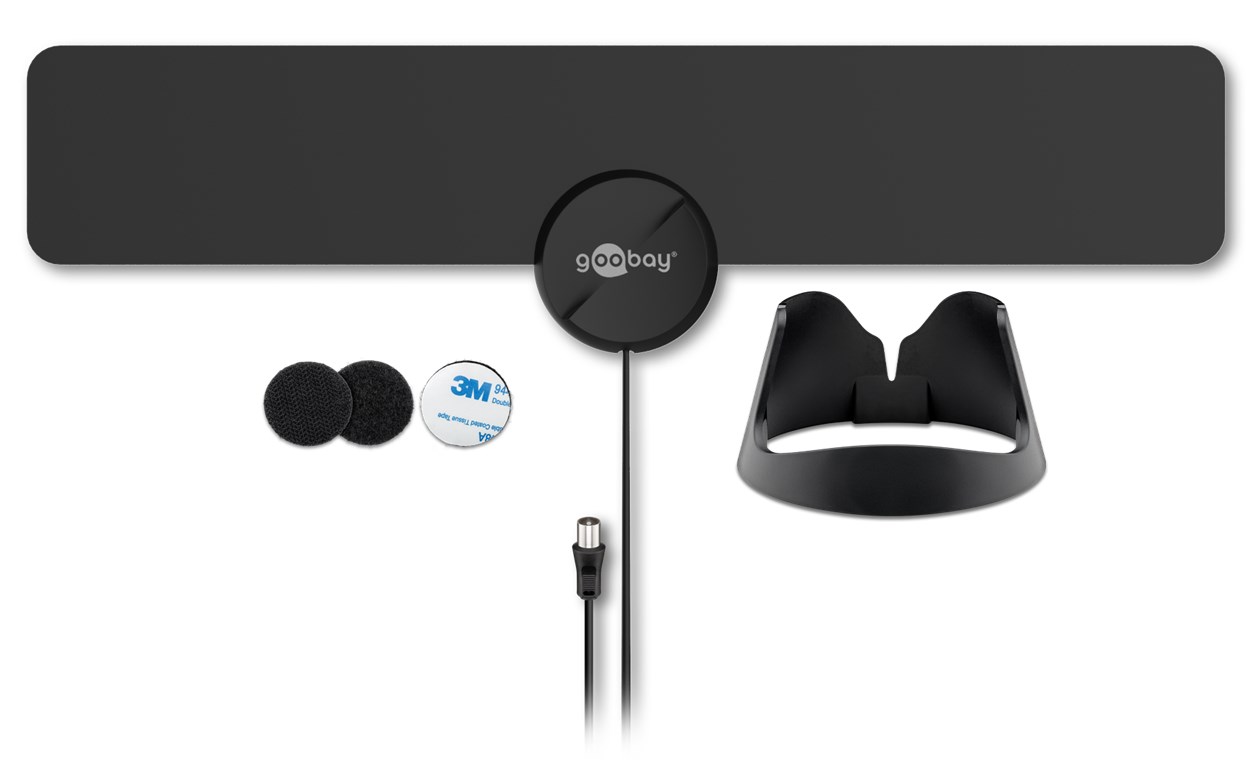

Trough the ultraflat design this antenna is very simple and nearly invisible. You can place it with the supplied mounting stand or with the hook and loop fastener at the wall.
The extreme low noise antenna amplifier optimizes the reception of the best digital signal within a range of 25 km from your nearest transmitter.
- For reception of digital TV signals in the UHF range (470 MHz - 790 MHz)
- Active DVB-T and DVB-T2 antenna especially for digital terrestrial TV reception (HD, SD)
- Amplifier power: up to 16 dBi
- GSM, LTE and 4G filters to prevent interference from mobile phones
- Recommended range to the transmitter: 0 - 25 km
- Ultra-flat design (0.5 mm), suitable for floor or wall mounting
- Shielded coaxial cable and coaxial plug for interference-free reception
ErP
| Average active efficiency |
72.4 % |
| No-load power consumption |
0.05 W |
Cable
Signal transmission
| Frequency Range UHF from |
470 |
| Frequency range UHF to |
790 |
| antenna gain UHF |
16 dBi max. |
| blocking filter |
LTE/4G |
| Amplifier power-supply |
via power supply (Euro plug, 230V) |
| Transmission modes |
DVB-T, DVB-T2 |
| Signal amplification |
yes |
General
| antenna Type |
Indoor Antenna |
| Color |
black |
| Markings |
WEEE, CE, Goobay_DVB-T2_HD, 4G/LTE-Filter |
| Special feature |
pliable |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Width |
355 mm |
| Height |
65 mm |
| depth |
0.5 mm |
| Weight |
98 g |
Scope of delivery
| power Supply |
100-240 V (Euro) |
accessory - Power supply
| Cable Length |
1.8 mm |
| Weight |
62 g |
| Dimensions |
55x36x60 |
| Output current |
0.55 A |
| Input AC frequency |
50/60 Hz |
| Input voltage |
100-240 V |
| Model identifier |
SW0500550-A02 |
