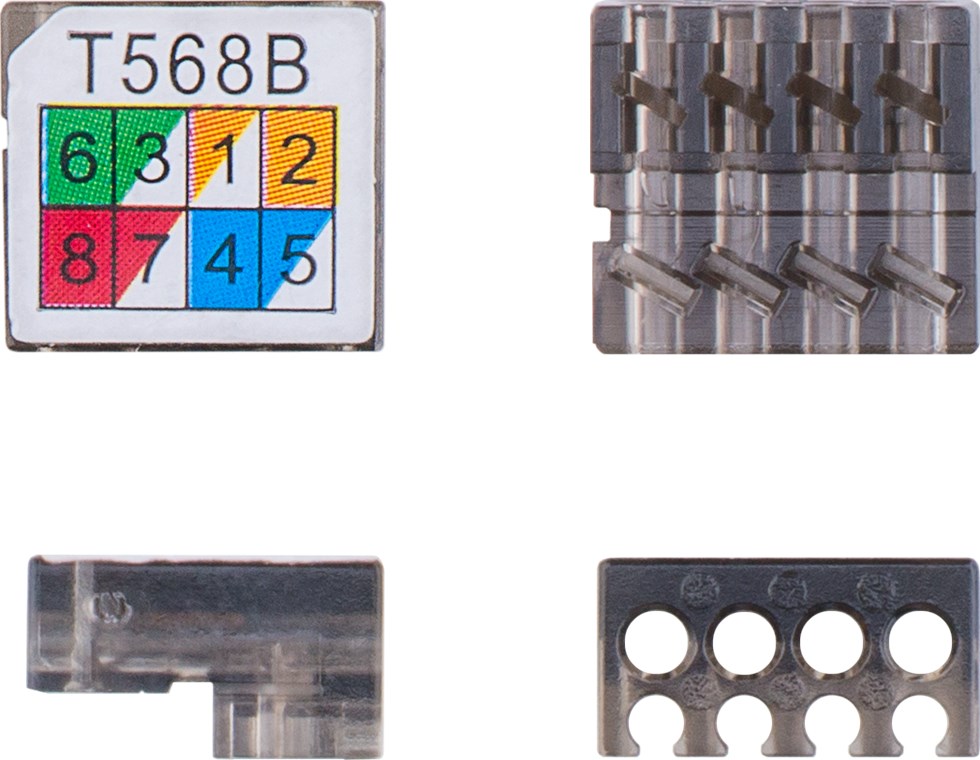

Toolless Cable Connector CAT 6A, STP Shielded
for IDC connection (toolless)
The cable connector is designed for 8-wire connection, extension, repair or rerouting of data cables. The major advantage of the connector over CAT connection boxes is its slim design. With the product, you can realise cable extensions even in confined space, e.g. in cable ducts. Goobay always provides the perfect products for your needs. Simply. All. You need!
- Shielded cable connection (STP) for extending or linking 2x LAN installation cables
- Connector module to reconnect damaged cables without re-routing an entire cable segment.
- For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
- Max. data transmission of 500 MHz guarantees an excellent network connection.
- Suitable for unterminated patch cables with AWG 24/1 to 22/1 (conductor diameter: solid wire 0.5 - 0.64 mm, stranded wire 0.61 - 0.76 mm and cable sheath diameter: 5.0 - 9.7 mm)
- Very slim connection module with shield connection and integrated strain relief
- Field assembly cable connector made of high-quality zinc die-cast housing
Technical specifications
Connections
| Connection 2, type | for IDC connection (toolless) |
| Connection, type | for IDC connection (toolless) |
Cable
| Specification | CAT 6A |
| Shielding class | STP |
Signal transmission
| max. bandwidth | 500 MHz |
General
| Material | zinc die-cast |
| Packaging type | Bulk |
Dimensions / Weight
| Length | 65 mm |
| Width | 11 mm |
| Height | 11 mm |
zł42.99 RRP
Packing units:
1 / 50 / 500
