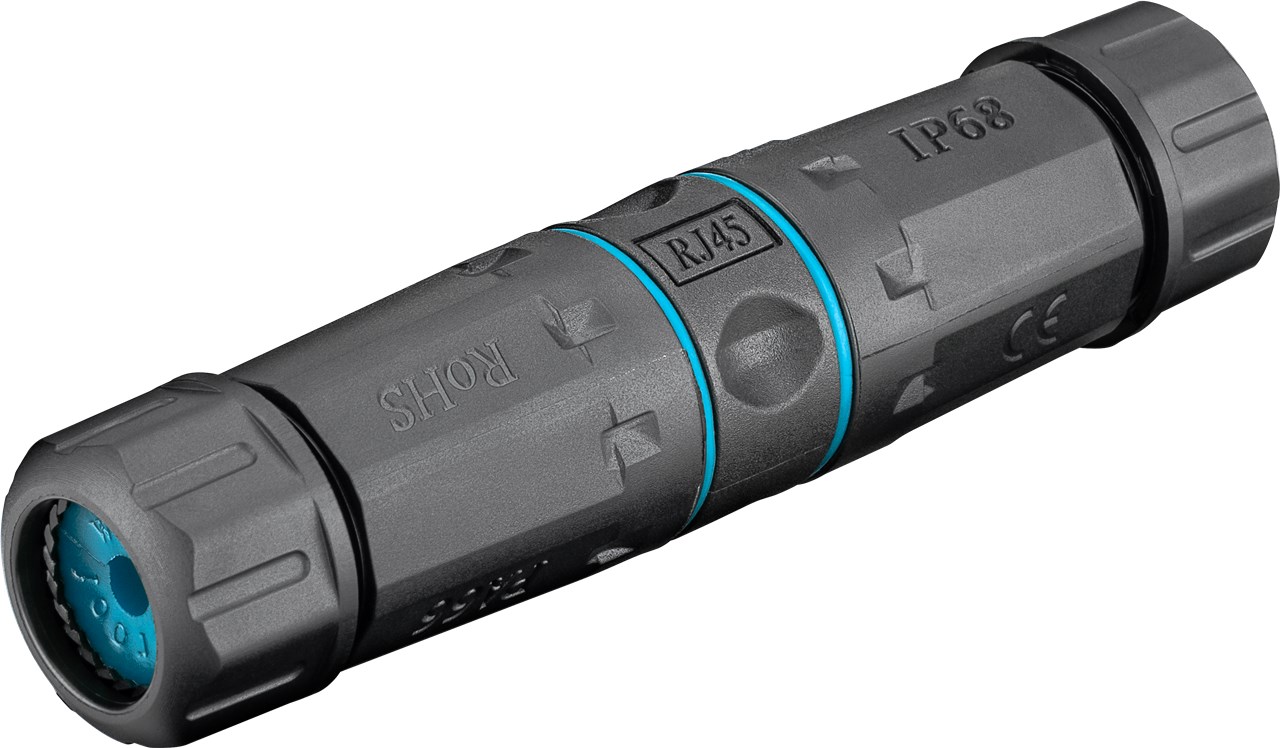

Outdoor (IP68) LAN Cable Connector, CAT 6A Shielded

dust and waterproof, for IDC connection (toolless)

• Shielded cable connection (STP) for extending or linking 2x LAN installation cables
• Field assembly cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68).
• Connector module to reconnect damaged cables without re-routing an entire cable segment.
• For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
• Max. data transmission of 500 MHz guarantees an excellent network connection.
• Suitable for unterminated patch cables with AWG 22-26 (conductor diameter: solid wire 0.48 - 0.65 mm, stranded wire 7 x 0.16 mm - 7 x 0.20 mm and cable sheath diameter: 5.0 - 7.5 mm)
• Very slim connection module with shield connection and integrated strain relief
