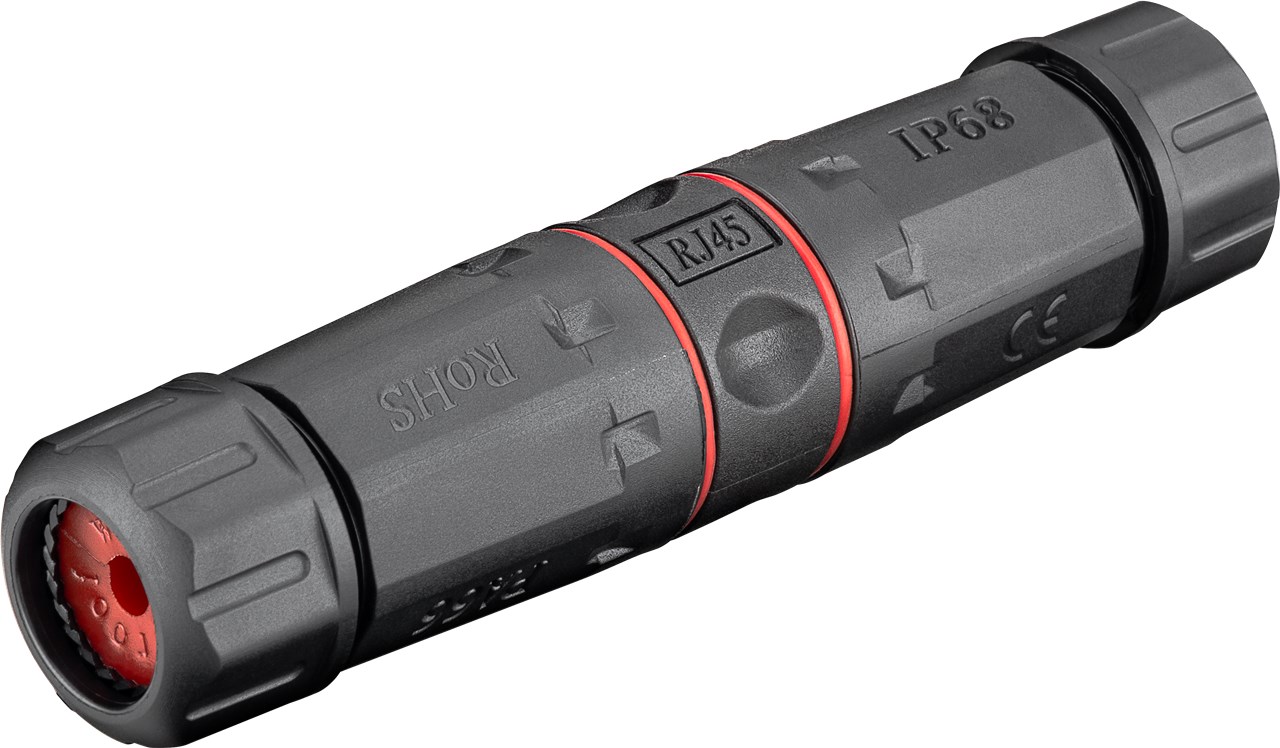

Outdoor (IP68) LAN Cable Connector, CAT 6 Shielded
dust and waterproof, for IDC connection (toolless)
- Shielded cable connection (STP) for extending or linking 2x LAN installation cables
- Field assembly cable connector for outdoor and industrial applications offers protection against dirt and moisture (protection class IP68).
- Connector module to reconnect damaged cables without re-routing an entire cable segment.
- For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
- Max. data transmission of 250 MHz guarantees an excellent network connection.
- Suitable for unterminated patch cables with AWG 22-26 (conductor diameter: solid wire 0.48 - 0.65 mm, stranded wire 7 x 0.16 mm - 7 x 0.20 mm and cable sheath diameter: 5.0 - 7.5 mm)
- Very slim connection module with shield connection and integrated strain relief
Connections
| Connection 2, type |
for IDC connection (toolless) |
| Connection, type |
for IDC connection (toolless) |
Cable
| Specification |
CAT 6 |
| Shielding class |
STP |
Signal transmission
General
| Operating temperature from |
-20 °C |
| Operating temperature up to |
85 °C |
| Packaging type |
Bulk |
Dimensions / Weight
| Consumption Unit |
1 pc. in polybag |
| Length |
122 mm |
| Diameter |
28 mm |
zł75.99 RRP
Packing units:
1 / 20 / 200
