Motion Detector, white
for flush wall mounting, 160° detection, 9 m range, for indoor use (IP20)
Perfectly integrated into your interior design: The motion detector is installed super-flat in a wall box and, with its simple, square design, fits in with many common switch ranges. You can conveniently switch the sensor on and off as required using the front switch.
- Can be used as a motion detector or as a regular light switch thanks to the switch with 3 modes: On, Off and PIR

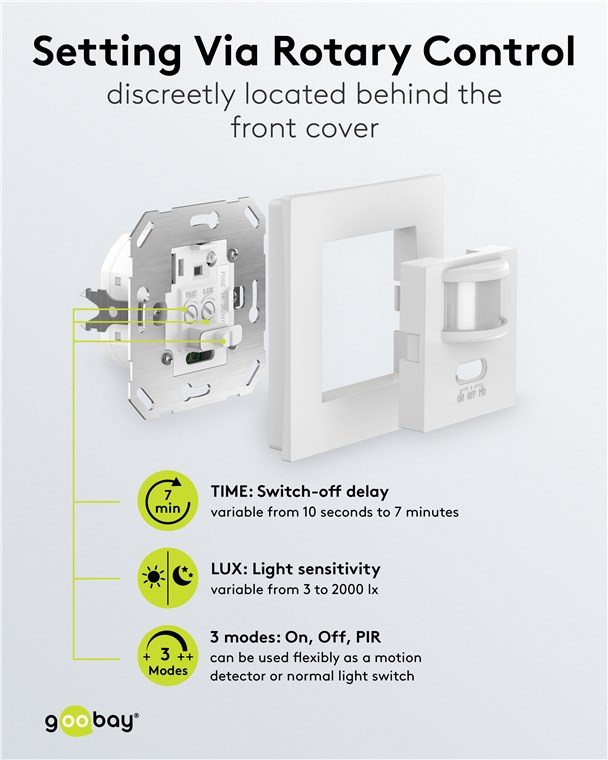

- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 7 min) are easily and continuously adjustable behind the cover with the rotary control
- Suitable for connecting LED lighting and energy-saving bulbs up to 200 W and incandescent bulbs up to 500 W

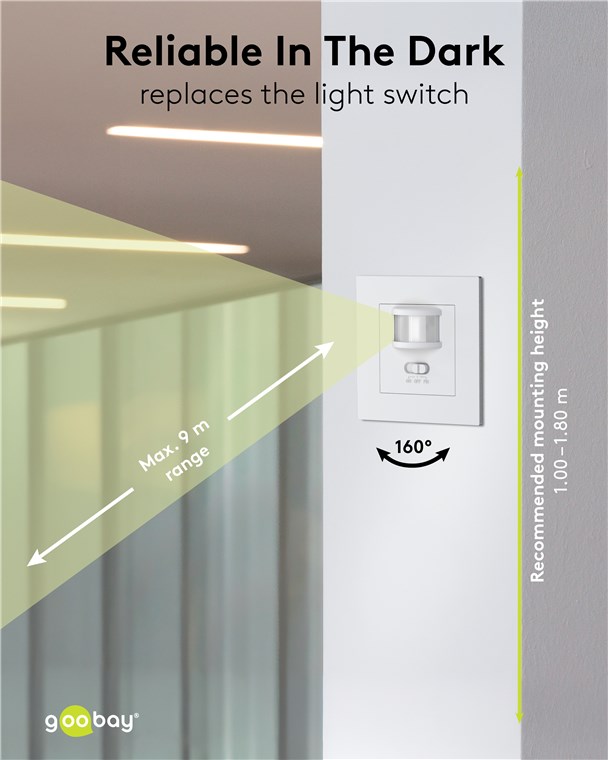

- Ideal for horizontal and vertical installation in flush-mounted or cavity wall boxes, installation height: 1.00 to 1.80 m
- Perfect for LED lighting as part of home automation or indoor security systems (protection class IP20)
- The PIR sensor reacts to the movement of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms
Not suitable for use with filament LED bulbs!
Technical specifications
Connections
| Connection, type | Screw clamp |
Performance
| switching power (LED/energy-saving lamp) | 200 W |
| switching power (Incandescent/halogen lamp) | 500 W |
| light sensitivity adjustable | 3 - 2000 lx |
| sensor type | passive infrared (PIR) |
| switch-off delay adjustable | 10 - 420 s |
| operating voltage | 230 V (AC) |
| max view angle | 160 ° |
| max. detection range | 9 m |
| recommended installation height | 1 - 1.8 m |
General
| protection class | IP20 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Operating temperature from | -20 °C |
| Operating temperature up to | 40 °C |
| Packaging type | Retail Box |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| Length | 82 mm |
| Width | 82 mm |
| Height | 24.7 mm |
zł50.99 RRP
Packing units:
1 / 10 / 40
