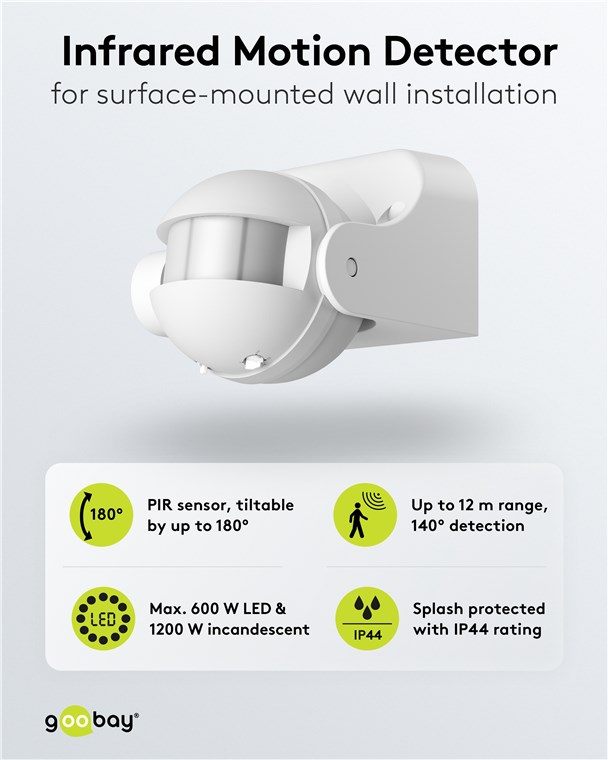

Motion Detector, Tiltable, white
for surface-mounted wall installation, 140° detection, 12 m range, for outdoor use (IP44), LED-compatible
Wind and weather? No problem, the motion detector is IP44-rated, making it perfect for outdoor areas such as gardens, carports or house entrances. Simply connect it to path or outdoor lighting to avoid tripping hazards at dusk and in the dark. Motion detectors from Goobay – always feel safe and sound.
- Flexible adjustment: The infrared sensor tilts up and down by 90° for optimised alignment

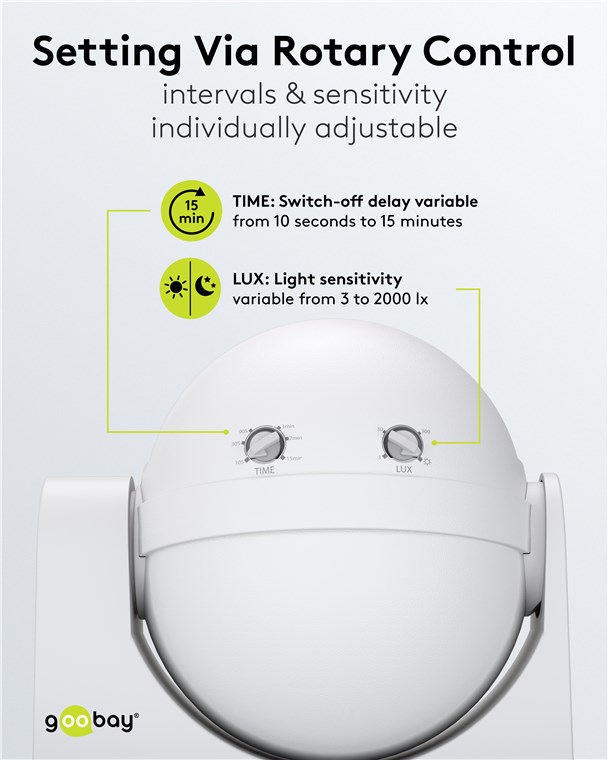

- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 15 min) can be easily and continuously adjusted using the rotary control on the underside
- Suitable for connecting LED lighting and energy-saving bulbs up to 600 W and incandescent bulbs up to 1200 W
- Ideal for surface-mounted wall installation (mounting materials included), installation height: 1.80 m to 2.50 m
- Splash protection according to protection class IP44, making it suitable for use in outdoor areas and damp rooms
- The PIR sensor reacts to the movement of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Practical for monitoring outdoor areas such as carports, house entrances, driveways or gardens
Accessories – Screws:
2x M3*30
2x matching dowels
Technical specifications
Connections
| Connection, type | Screw clamp |
Performance
| switching power (LED/energy-saving lamp) | 600 W |
| switching power (Incandescent/halogen lamp) | 1200 W |
| light sensitivity adjustable | 3 - 2000 lx |
| sensor type | passive infrared (PIR) |
| switch-off delay adjustable | 10 - 900 s |
| operating voltage | 230 V (AC) |
| inclination and tilting ranges | 180° |
| max view angle | 140 ° |
| max. detection range | 12 m |
| recommended installation height | 1.8 - 2.5 m |
General
| protection class | IP44 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Operating temperature from | -20 °C |
| Operating temperature up to | 40 °C |
| Packaging type | Retail Box |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| Length | 97.9 mm |
| Width | 86.5 mm |
| depth | 77.88 mm |
zł42.99 RRP
Packing units:
1 / 10 / 30
