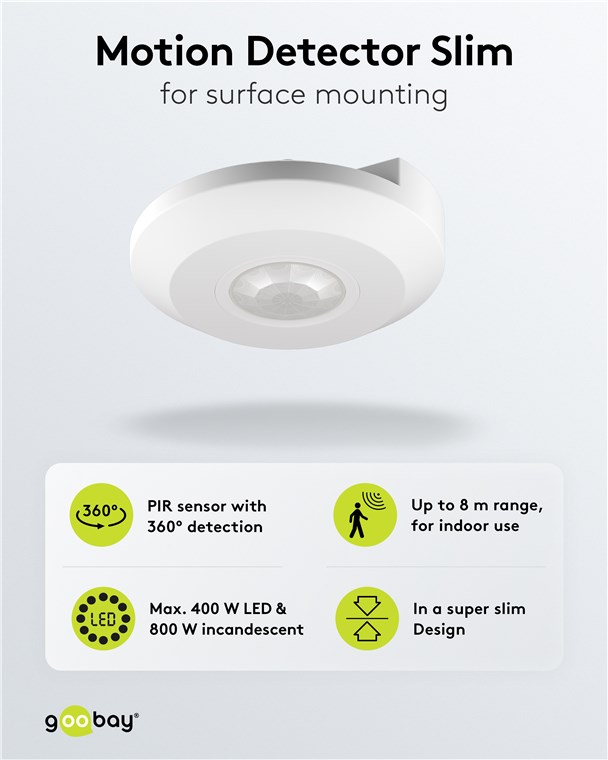

Motion Detector Slim, white
for surface-mounted ceiling mounting, 360° detection, 8 m range, for indoor use (IP20), LED-compatible
Would you like a surface-mounted solution, but don't want a bulky device on the ceiling? No problem, this motion detector is a sensational 25 mm flat and therefore very discreet. It is extremely easy to operate: The white cover conceals the rotary controls, which you can use to adjust the light sensitivity and switch-off delay – even after installation. This gives the device the clear edge over flush-mounted models.

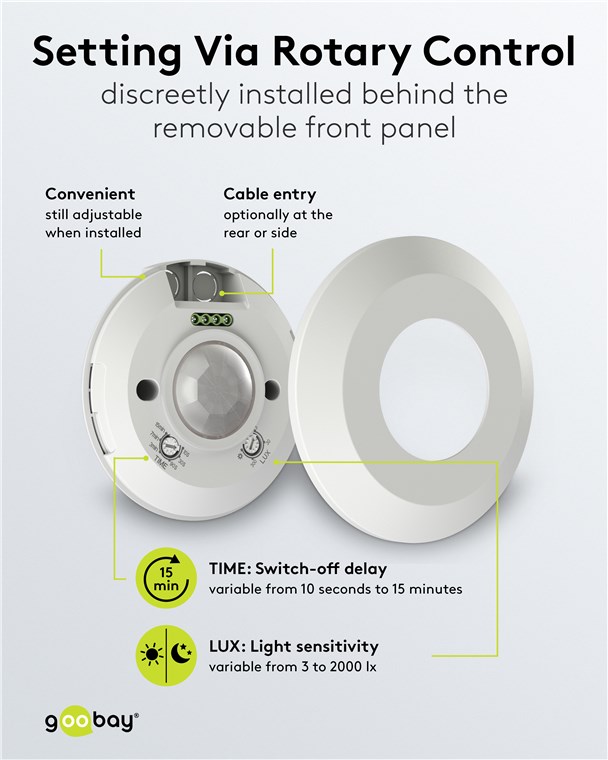

- Discreet look, easy operation: The cover can be easily twisted off to adjust the light sensitivity and switch-off delay even after installation – without dismounting or screwing
- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 15 min) are easily and continuously adjustable behind the removable cover with the rotary control
- Perfect for LED lighting as part of home automation or indoor security systems
- Replaces the light switch and switches without contact: particularly practical in rooms where you enter with your hands full, e.g. hallways or utility rooms
- Suitable for connecting LED lighting and energy-saving lamps up to 400 W and incandescent lamps up to 800 W
- With a detection angle of 360°, ideal for surface-mounted ceiling installation, installation height: 2.20 m to 4 m
- The PIR sensor reacts to the movement of people or animals and activates the connected lighting when it is dark
Accessories – Screws:
2x M3*30
2x matching dowels
Technical specifications
Connections
| Connection, type | Screw clamp |
Performance
| switching power (LED/energy-saving lamp) | 400 W |
| switching power (Incandescent/halogen lamp) | 800 W |
| light sensitivity adjustable | 3 - 2000 lx |
| sensor type | passive infrared (PIR) |
| switch-off delay adjustable | 10 - 900 s |
| operating voltage | 230 V (AC) |
| max view angle | 360 ° |
| max. detection range | 8 m |
| recommended installation height | 2.2 - 4 m |
General
| protection class | IP20 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Operating temperature from | -20 °C |
| Operating temperature up to | 40 °C |
| Packaging type | Retail Box |
Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |

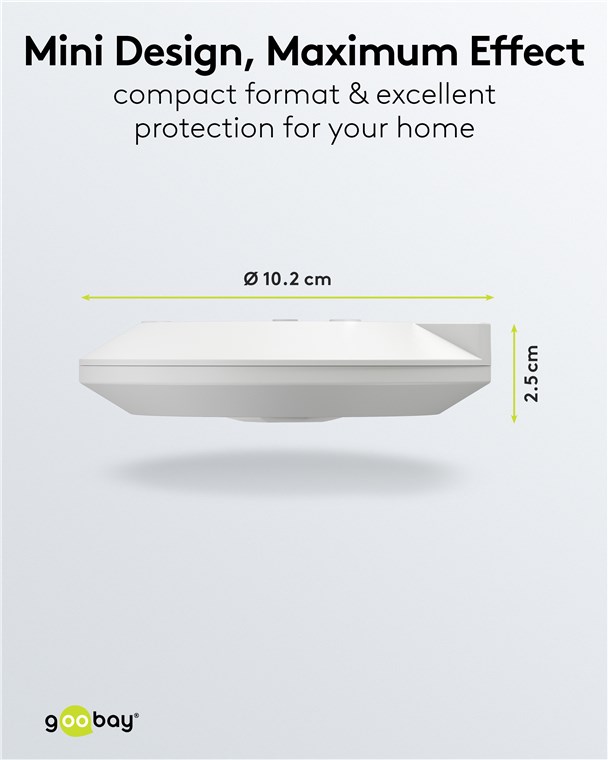

| Height | 24.9 mm |
| Diameter | 102 mm |
zł63.99 RRP
Packing units:
1 / 10 / 40
