Keystone Module RJ45 CAT 6A, UTP, Slim & Short
16.5 mm wide, 29 mm deep, for tool-free IDC mounting
One system, all connectors: With the modular Keystone connection system, you can quickly and flexibly install any connector in empty housings, network sockets or patch panels. Whether RJ45, HDMI™, USB or satellite antenna – there is always the right Keystone connector for the standardised module ports (14.9 x 17.0 mm). Choose the tool-free and easy snap-in installation system. You'll always be one ‘click’ ahead of the cable clutter.

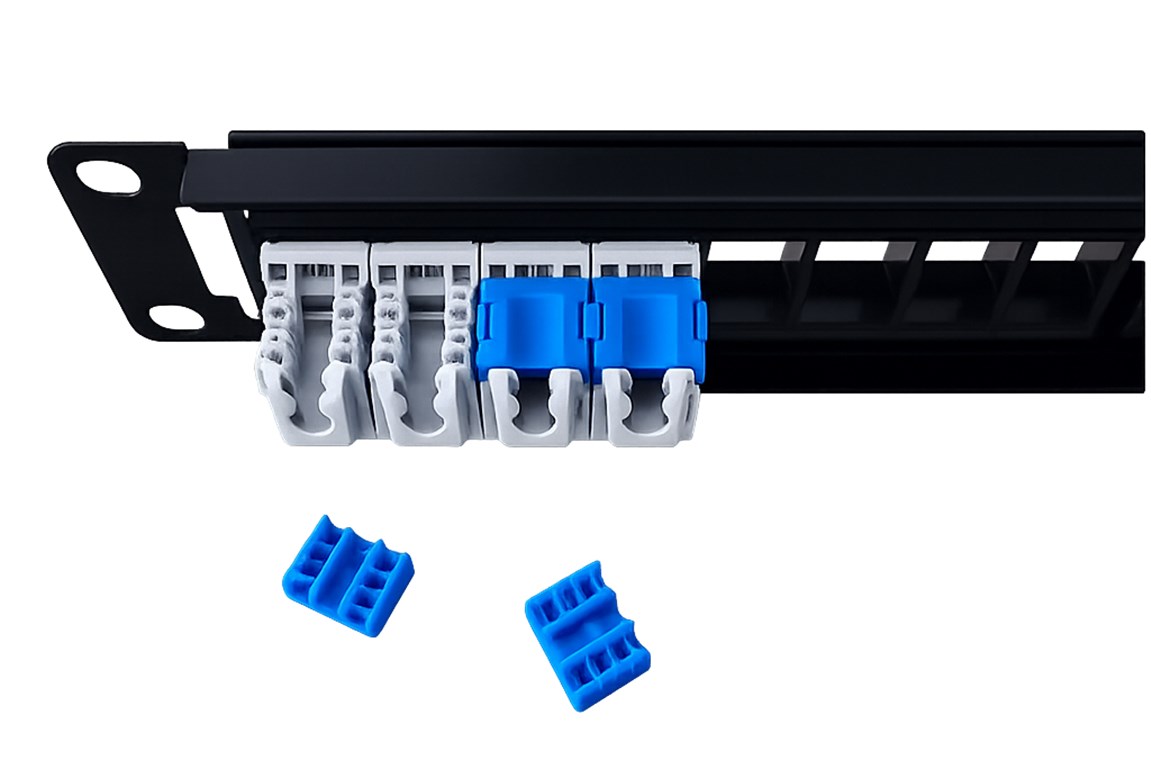

- CAT 6A Keystone module in a slim design and 16.5 mm wide for space-saving installation in patch panels – no longer lack of space when inserting several modules next to each other
- With a length of only 29 mm, the module reduces the depth required on the back of the panel – handy in network cabinets and environments where cables must not protrude excessively
- Quick and easy installation: After inserting the individual wires, simply and effortlessly press the top cover down (TIA 568A/B colour-coded insulation displacement connector)
- STP-shielded RJ45 coupler with robust zinc die-cast housing for flawless transmission of network signals
- The module is suitable for Power over Ethernet (PoE+) in accordance with IEEE 802.3at and supports 10 Gigabit Ethernet applications at 500 MHz
- Perfect for cable assembly in patch panels or control cabinets and in structured building cabling
- The RJ45 socket for field assembly is suitable for solid and stranded wire
CABLE MATCHED:
1. SOILD AND STRANDED
2. 22AWG / 23AWG / 24AWG
3. SOLID CABLE:1/22AWG(0.65MM)-1/24AWG(0.5MM) ID:1.0MM-1.5MM
4. STRANDED CABLE:7/22AWG-7/24AWG ID:1.0MM-1.5MM
Technical specifications
Connections
| Connection 2, type | for IDC connection (toolless) |
| Connection, type | RJ45 female (8P8C) |
Cable
| Specification | CAT 6A |
| Shielding class | UTP |
| Cable type | for solid or stranded wire |
| AWG | 24-22 |
Signal transmission
| max. bandwidth | 500 MHz |
General
| Packaging type | Bulk |
Dimensions / Weight
| Consumption Unit | 1 pc. in polybag |
| Width | 16.5 mm |
| depth | 33 mm |
Downloads
Product data sheet pdf
zł27.99 RRP
Packing units:
1 / 50 / 500
