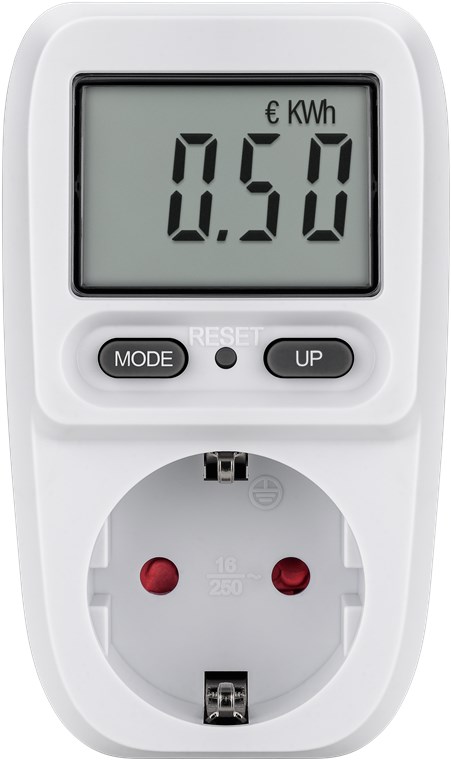

Digital Energy Cost Meter Basic
for measuring the power consumption of electrical household appliances
- Power meter socket to calculate the running costs of household appliances and determine the savings potential, e.g. for refrigerators, washing machines, computers, televisions and floor lamps

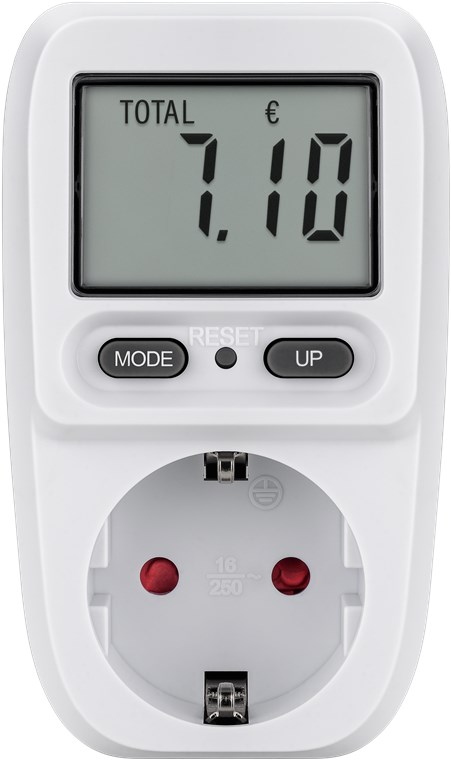

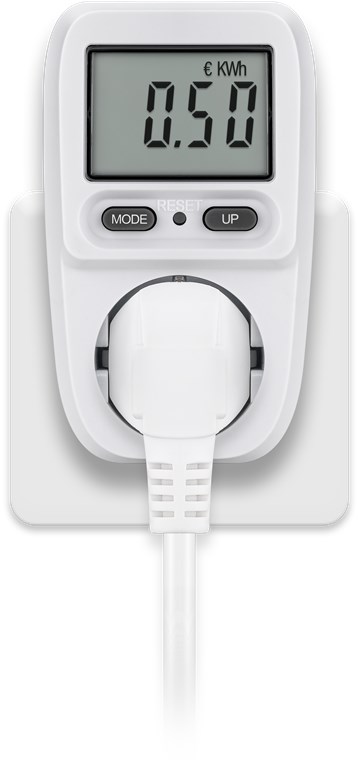

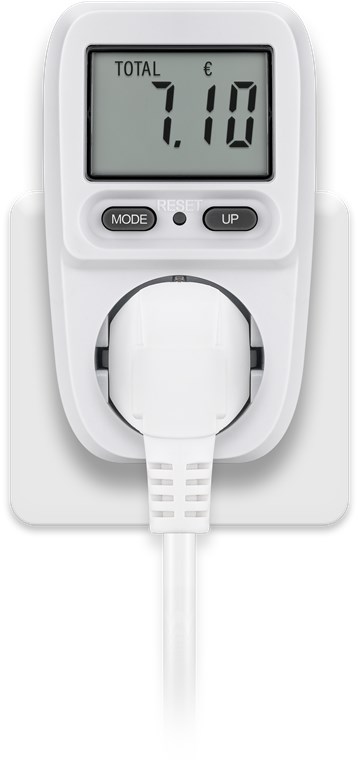

- Calculates power costs in euros/kWh according to individual electricity tariff specifications
- With a very large measuring range between 0.5 W and 3680 W (max. power 3680 W, 16 A at 230 V)

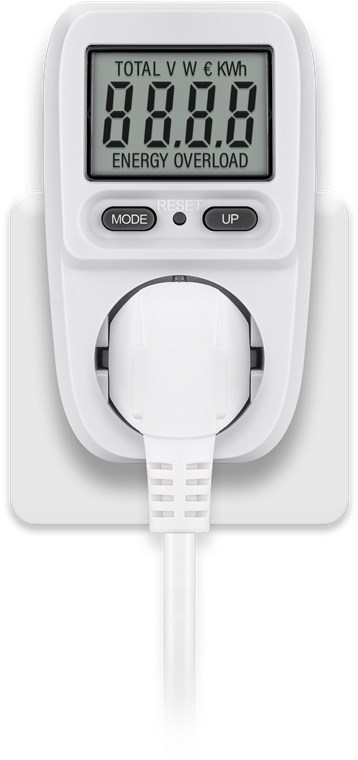

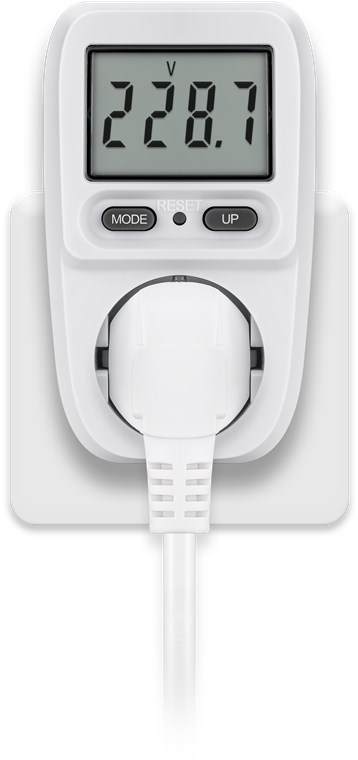

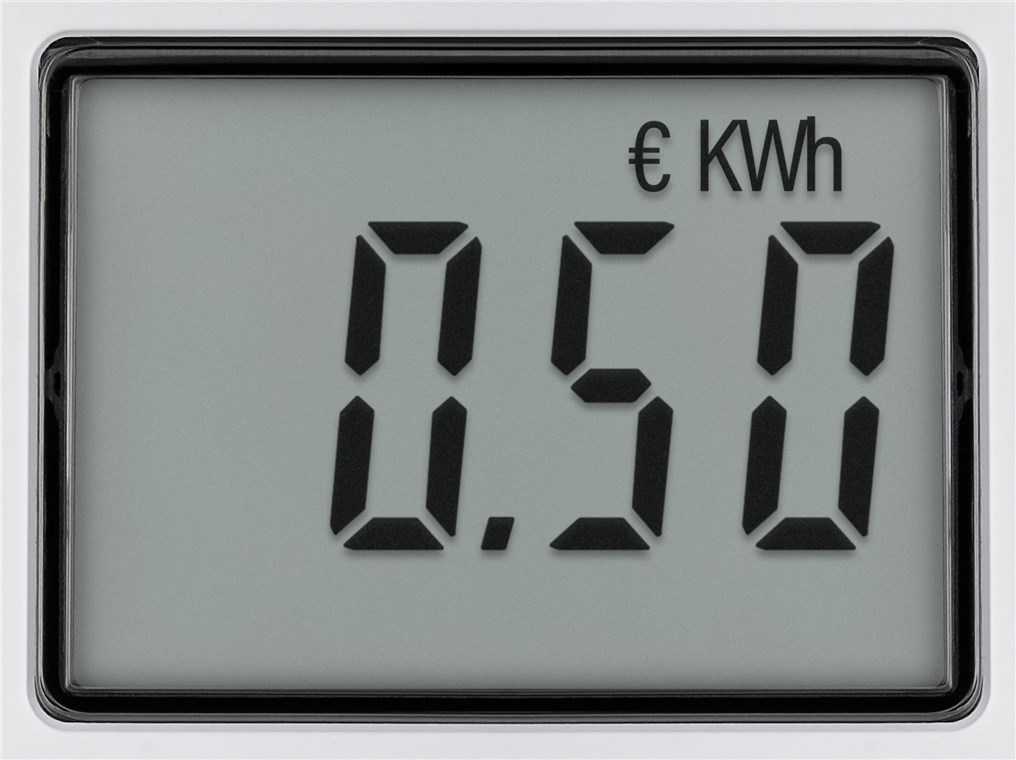

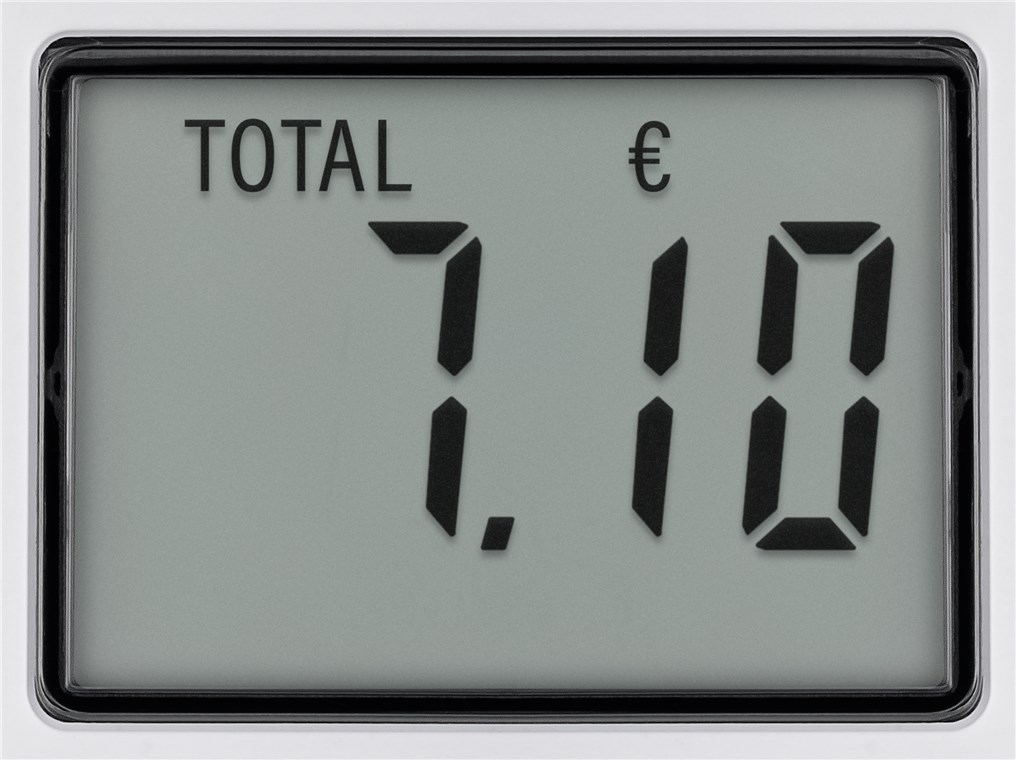

- Energy meter with an easy-to-read LC display that indicates the energy consumption and the energy costs
- Allows both real-time reading of data as well as long-term measuring as long as the unit stays connected to the power supply

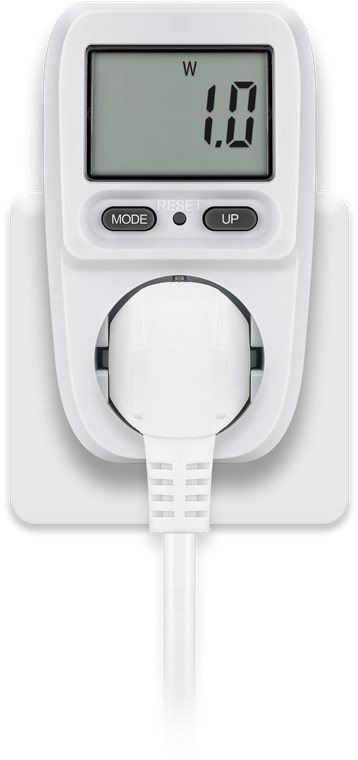

- Easy operation via two buttons and connection via simple plug-in between the consumer and the socket (Type E/F, CEE 7/3)
- With protection class IP20, the energy monitor is only suitable for indoor use
Connections
| Input, type |
safety plug (Type F, CEE 7/4) |
| Output, type |
safety socket (Type F, CEE 7/3) |
Performance
| max. switching capacity |
3680 W |
| operating voltage |
230 V (AC) |
| max. performance |
3680 W |
Device connections
| Output, max. amperage |
16 A |
General
| Appliance Class |
I |
| protection class |
IP20 |
| Color |
white, grey |
| Markings |
WEEE, CE |
| Packaging type |
Retail Box |
Dimensions / Weight
| Consumption Unit |
1 pc. in cardboard box |
| Length |
108 mm |
| Width |
63.5 mm |
| depth |
74.5 mm |
| Weight |
115 g |
Language Scope
| packaging |
de, en, fr, it, es, nl, da, sv, cs, pl |
SCIP
| SCIP no. |
ea1045de-0891-4d7c-aa39-c3292d159368 |
| chemical substance |
Pb |
| CAS no. |
7439-92-1 |
