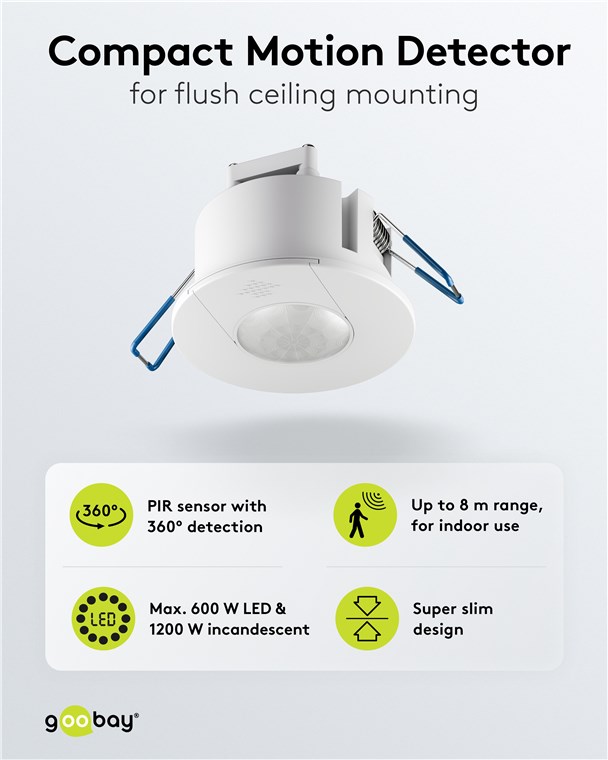

Compact Motion Detector, white
for flush-mounted ceiling installation, 360° detection, 8 m range, for indoor use (IP20), LED-compatible

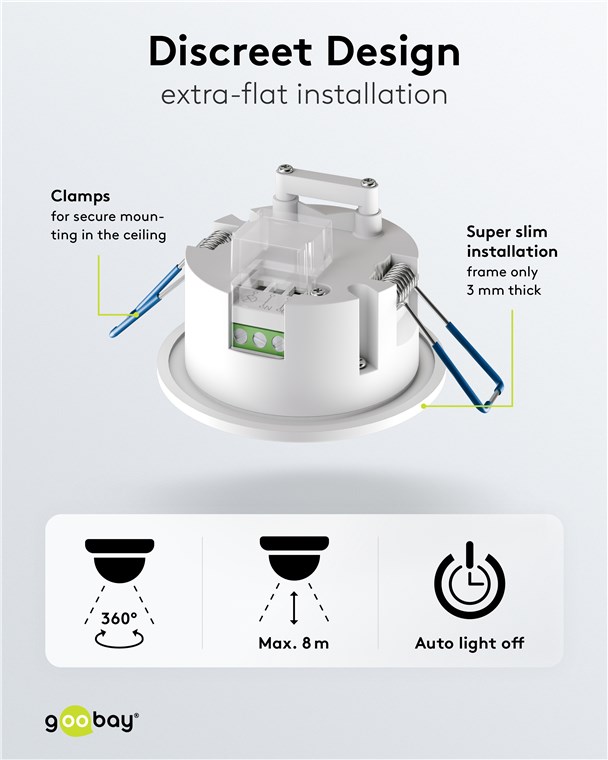

Clever and compact: The motion detector has a diameter of 7.6 cm and protrudes only approx. 5 mm from the ceiling. This makes it the super-flat option among motion detectors and perfect for discreet installation. The white cover conceals the rotary controls, which allow you to easily adjust the light sensitivity and switch-off delay – even after installation.
- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 15 min) are easily and continuously adjustable using a rotary control

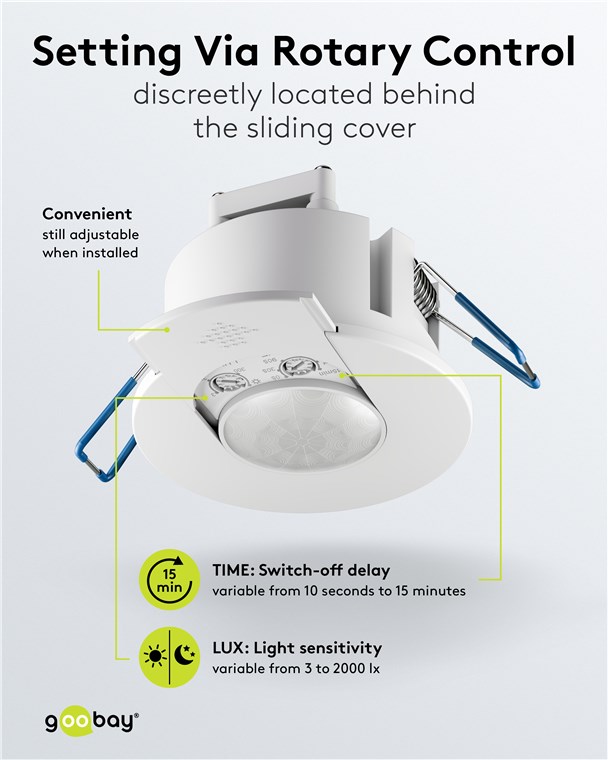

- Discreet appearance, easy to use: The rotary controls for light sensitivity and switch-off delay are located under the sliding cover to adjust the settings at any time – without dismounting and without tools
- Suitable for connecting LED lighting and energy-saving bulbs up to 600 W and incandescent bulbs up to 1200 W

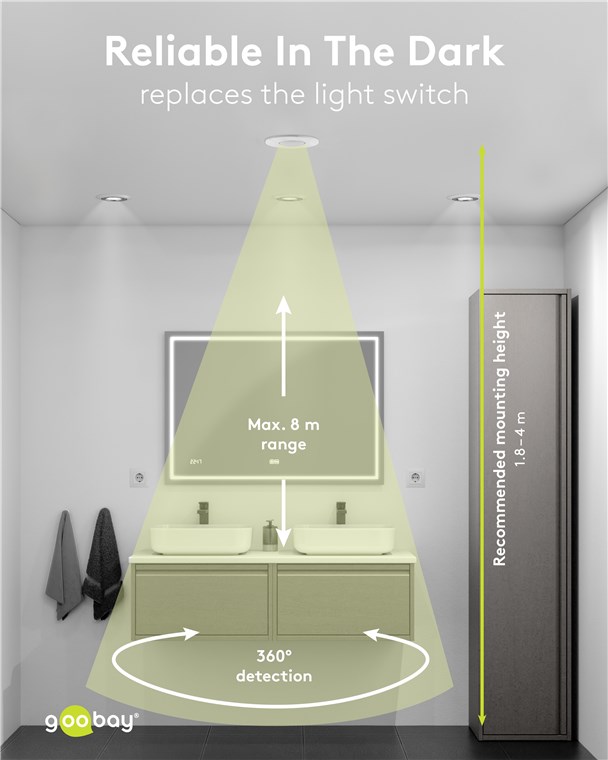

- With a detection angle of 360°, ideal for flush-mounted ceiling installation, installation height: 1.80 m to 4 m

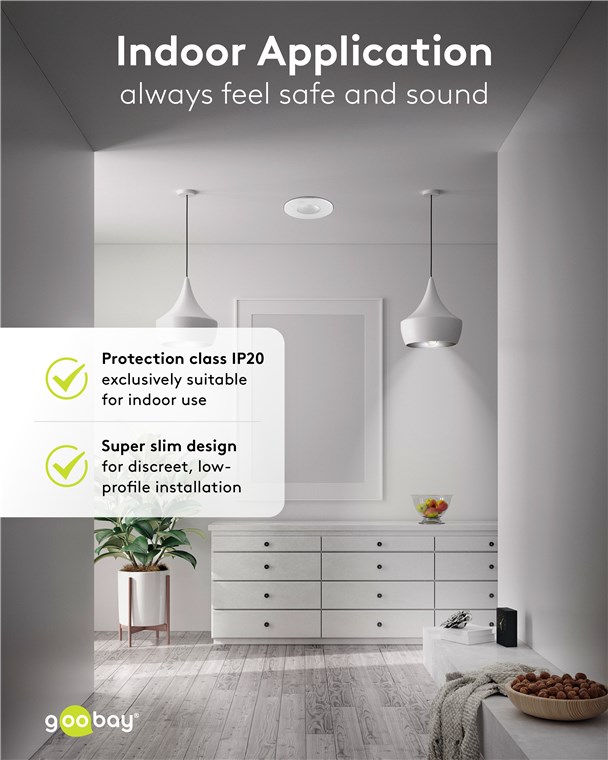

- Perfect for LED lighting as part of home automation or indoor security systems (protection class IP20)
- The PIR sensor reacts to the movement of people or animals and activates the connected lighting when it is dark
- Replaces the light switch and switches without contact: Particularly practical in rooms that you enter with your hands full, e.g. hallways or utility rooms
Technical specifications
Connections
| Connection, type | Screw clamp |
Performance
| switching power (LED/energy-saving lamp) | 600 W |
| switching power (Incandescent/halogen lamp) | 1200 W |
| light sensitivity adjustable | 3 - 2000 lx |
| sensor type | passive infrared (PIR) |
| switch-off delay adjustable | 10 - 900 s |
| operating voltage | 230 V (AC) |
| max view angle | 360 ° |
| max. detection range | 8 m |
| recommended installation height | 1.8 - 4 m |
General
| protection class | IP20 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Operating temperature from | -20 °C |
| Operating temperature up to | 40 °C |
| Packaging type | Retail Box |

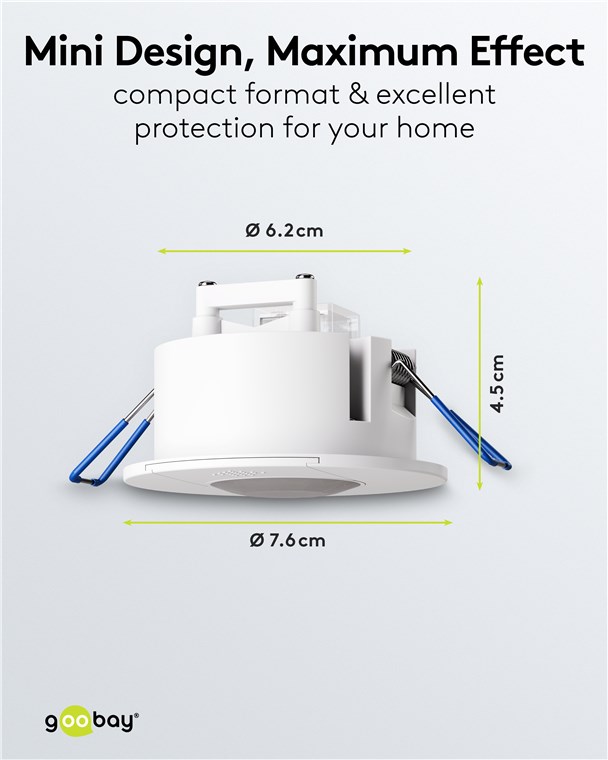

Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| Height | 44.8 mm |
| Diameter | 76 mm |
warranty
| Warranty | 5 years |
zł50.99 RRP
Packing units:
1 / 10 / 40
