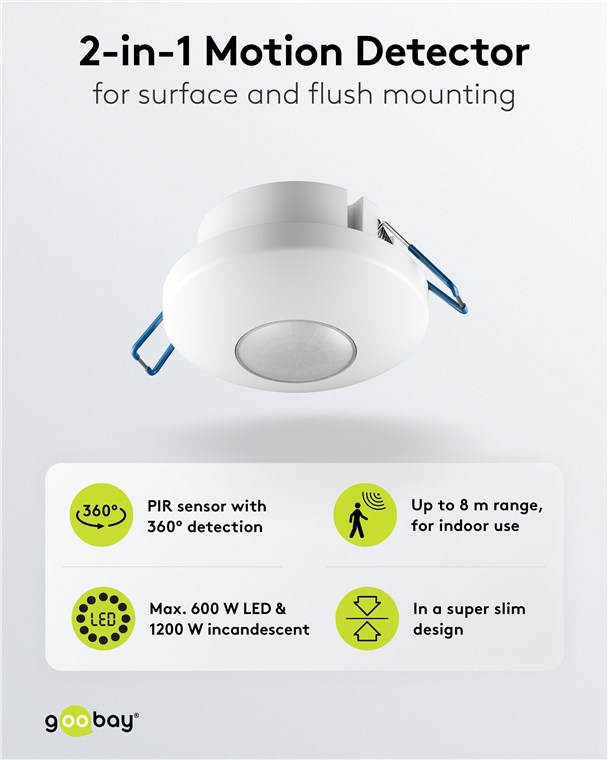

2-in-1 Motion Detector, white
for surface and flush mounting, 360° detection, 8 m range, for indoor use (IP20), LED-compatible

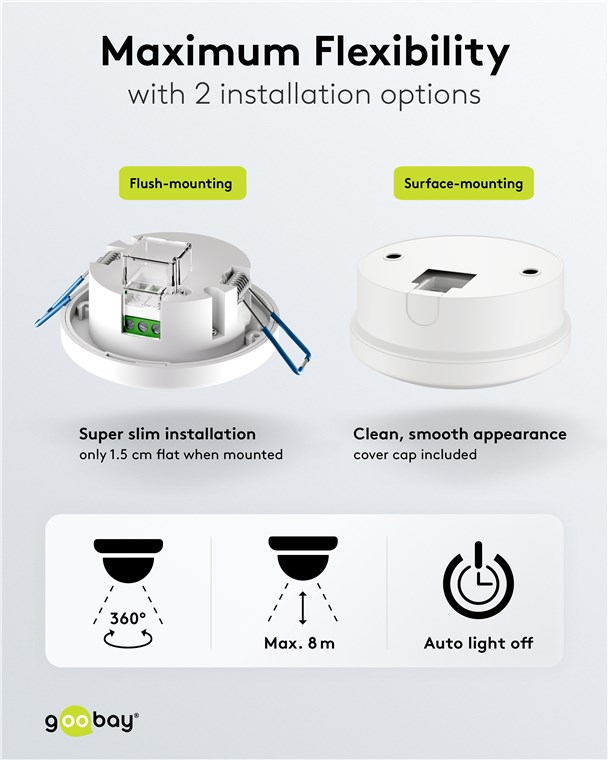

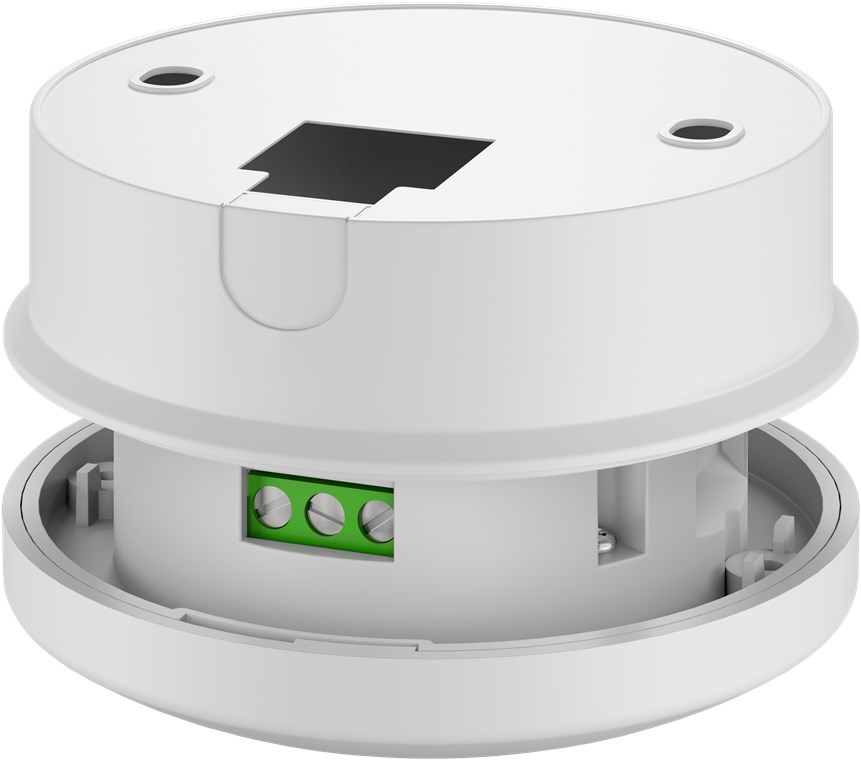

Flexibility is key: The motion detector has two clips for secure flush mounting. If necessary, the clips can be removed to convert the motion detector into a surface-mounted version using the supplied canopy. With both installation options, it is perfect for corridors, bathrooms or hallways – the motion detector always reliably activates the connected lighting.
- Suitable as a flexible 2-in-1 solution for flush-mounted and surface-mounted installation, including brackets and canopy for the respective installation options

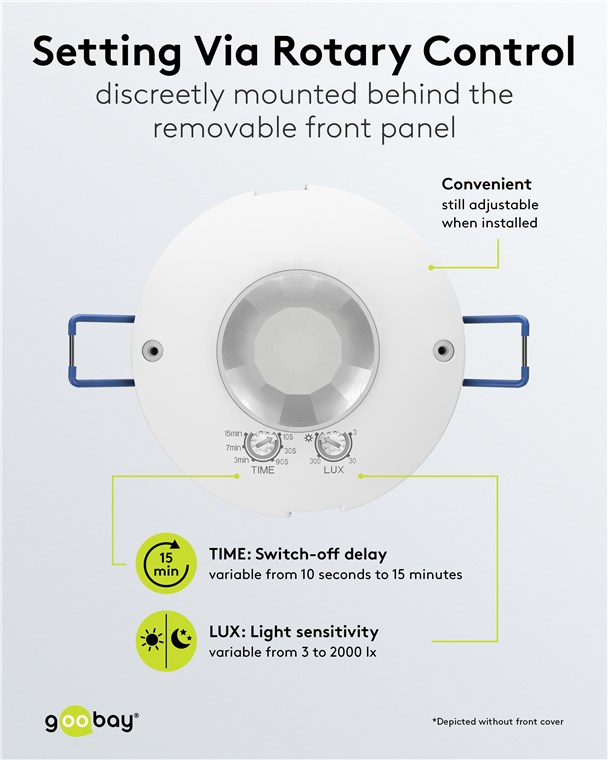

- Light sensitivity (3 lx to 2000 lx) and switch-off delay (10 s to 15 min) are easily and continuously adjustable behind the removable cover using a rotary control
- Discreet appearance, easy to use: The rotary controls for light sensitivity and switch-off delay are located under the removable cover to adjust the settings at any time – without dismounting and without tools
- Suitable for connecting LED lighting and energy-saving bulbs up to 600 W and incandescent bulbs up to 1200 W

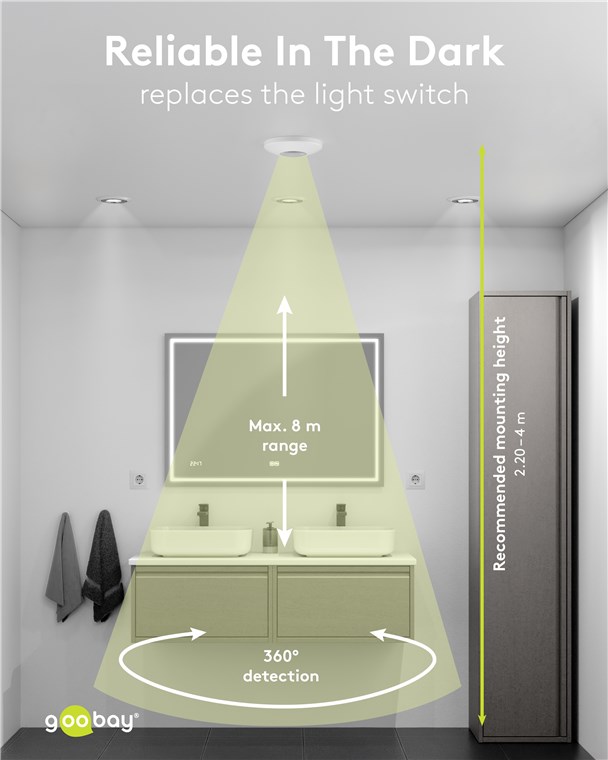

- With a detection angle of 360°, ideal for flush-mounted ceiling installation, installation height: 2.20 m to 4 m

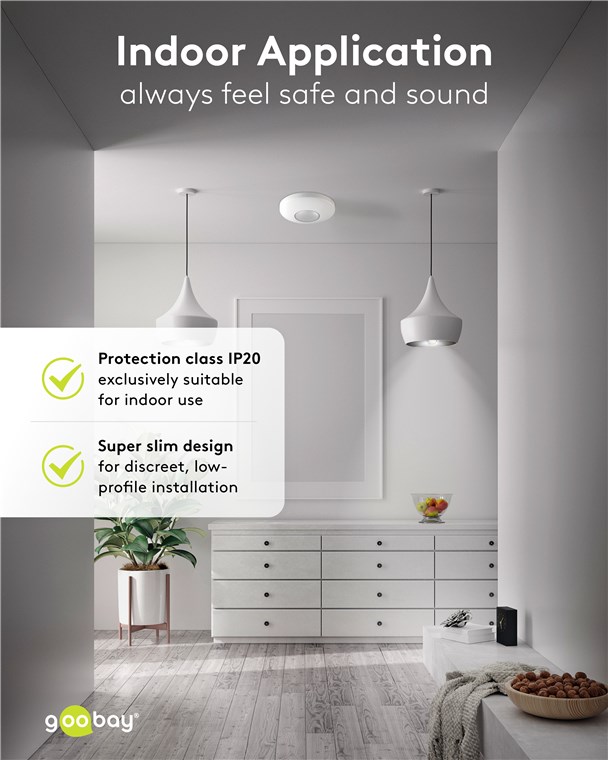

- Perfect for LED lighting as part of home automation or indoor security systems (protection class IP20)
- The PIR sensor reacts to the movement of people or animals and activates the connected lighting when it is dark
Accessories – Screws:
2x M3*30
3x M2.5*8
2x Ø 6 dowels
Technical specifications
Connections
| Connection, type | Screw clamp |
Performance
| switching power (LED/energy-saving lamp) | 600 W |
| switching power (Incandescent/halogen lamp) | 1200 W |
| light sensitivity adjustable | 3 - 2000 lx |
| sensor type | passive infrared (PIR) |
| switch-off delay adjustable | 10 - 900 s |
| operating voltage | 230 V (AC) |
| max view angle | 360 ° |
| max. detection range | 8 m |
| recommended installation height | 2.2 - 4 m |
General
| protection class | IP20 |
| Color | white |
| Markings | CE, WEEE, Haus |
| Operating temperature from | -20 °C |
| Operating temperature up to | 40 °C |
| Packaging type | Retail Box |

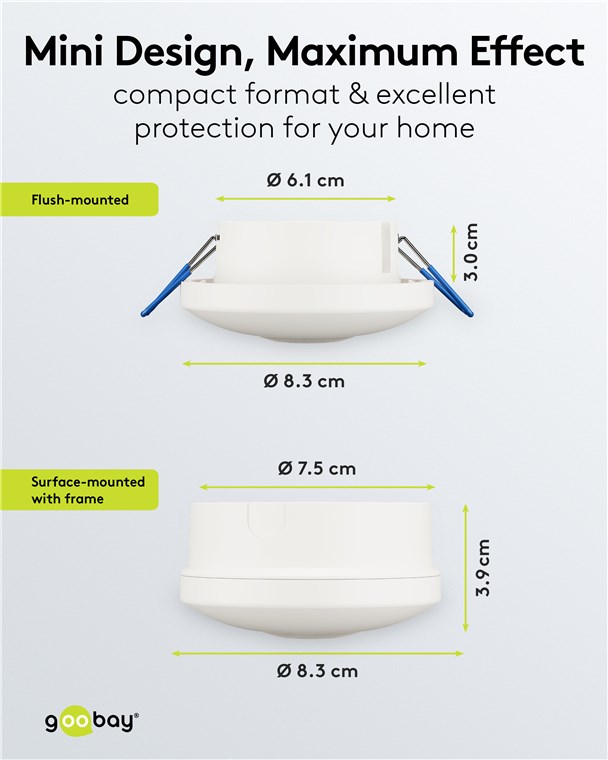

Dimensions / Weight
| Consumption Unit | 1 pc. in cardboard box |
| Height | 39.2 mm |
| Diameter | 83 mm |
zł59.99 RRP
Packing units:
1 / 10 / 40
